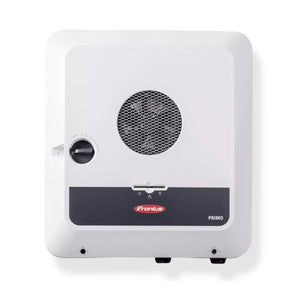

Ready for the private energy revolution: With our Fronius GEN24* inverter at the heart of their private photovoltaic system, households can produce their own energy sustainably and inexpensively. The Fronius GEN24 Plus hybrid inverter even enables a battery storage system to be used, providing complete energy self-sufficiency for electricity, heating, cooling, and e-mobility, even at night.
While the Fronius GEN24 offers an integrated basic backup power supply in the form of the PV Point, the Fronius GEN24 Plus** can also provide a comprehensive Full Backup power supply via a connected battery storage system.
- The heart of private photovoltaic systems
- Fronius UP.storage: Software upgrade from the Fronius GEN24 to the Fronius GEN24 Plus* hybrid inverter
- Fast installation and configuration
- Sustainable development and production
- Made in Europe
Specs
| Power Output | 7.7kW |
| DC Voltage | 600V |
| Maximum DC Input Voltage | 600V |
| Number Of MPPT's | 2 |
| Breaker | 60A |
| Cooling Method | Active Cooling Technology |
| Inverter Type | Hybrid |
| Battery Compatibility | 600V Lithium, TBD |
| Number of DC Inputs | 2 |
| Connectivity | RS485/WiFi/Ethernet |
| Maximum Operation DC Input Current | 22A |
| Maximum Short Circuit DC Input Current | 36/41.25A |
| AC Voltage | 120/240V |
Shipping Dimensions
| Weight: | 46.00 LBS |
| Width: | 59.00 (cm) |
| Height: | 53.00 (cm) |
| Depth: | 18.00 (cm) |
Warranty Information
| Warranty | 10 Years |
